Node Communication in ROS2 Jeteja

Below are the images of the node communication when running typical Jeteja ROS2 packages using rqt_graph.

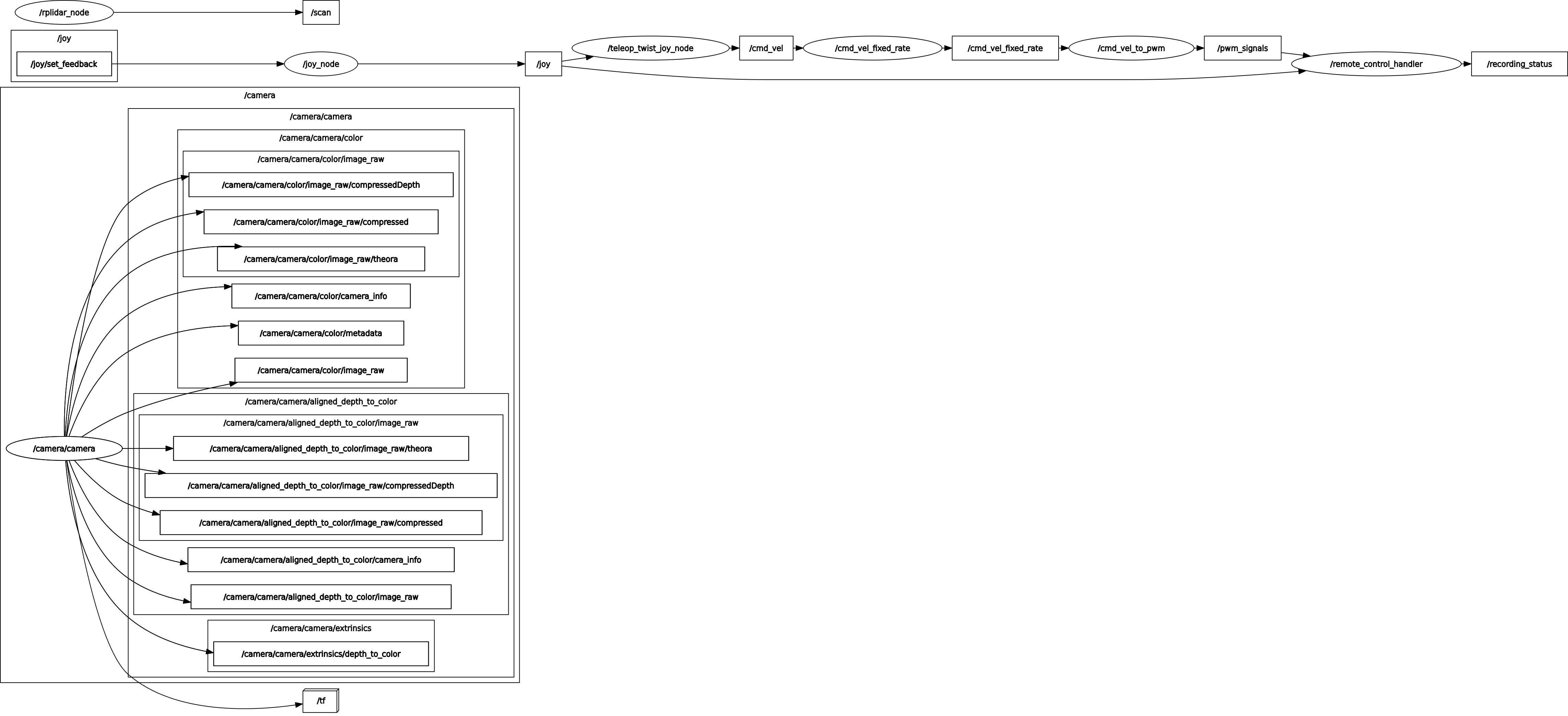

RQT graph when running the jeteja_launch package in manual mode

jeteja_launch_manual

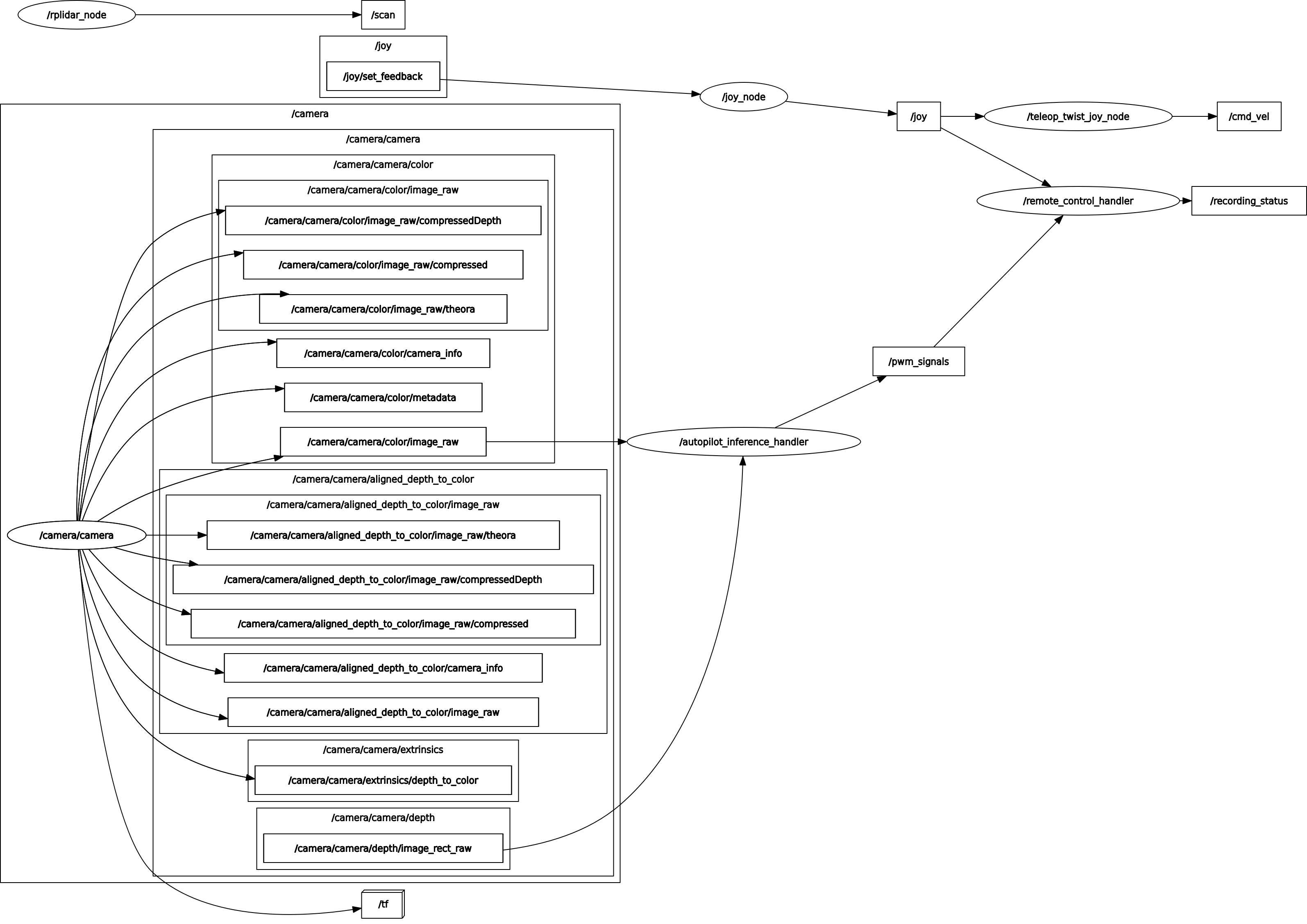

RQT graph when running the jeteja_launch package in autopilot mode

jeteja_launch_autopilot

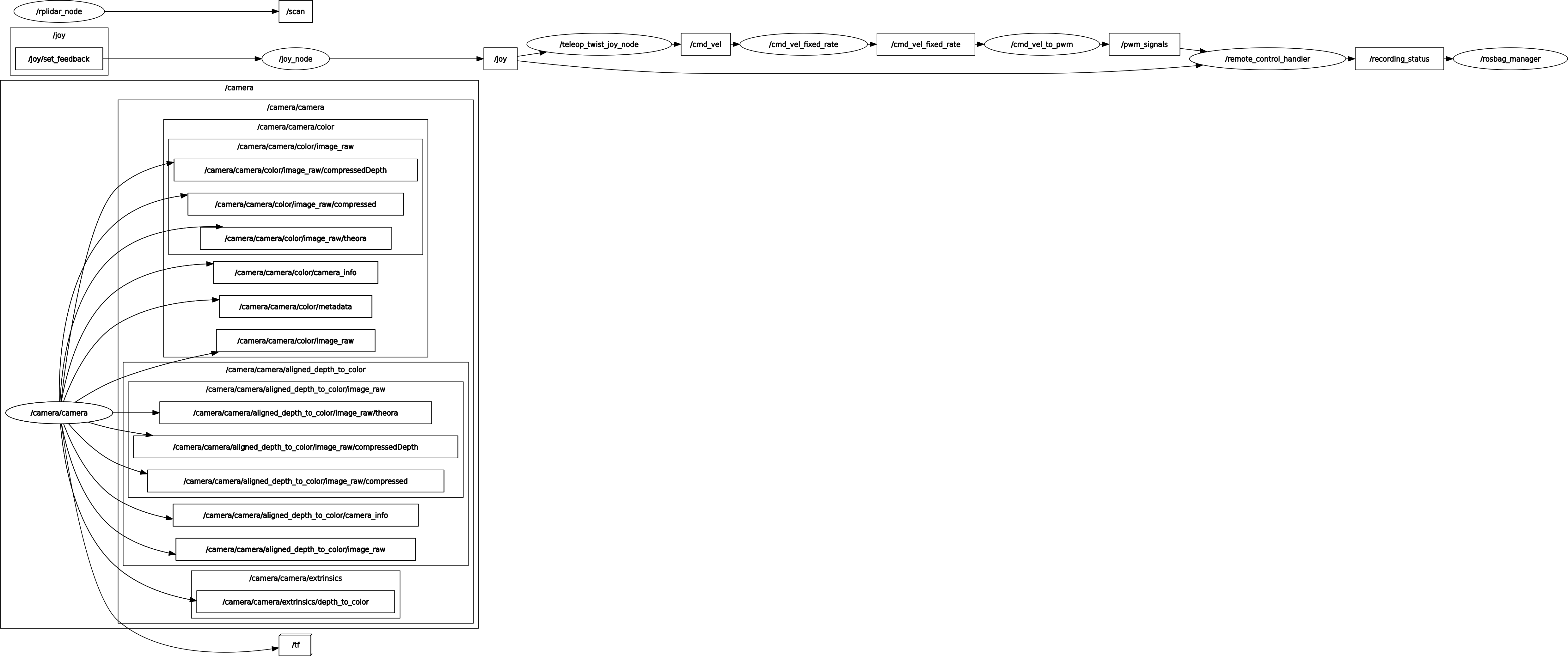

RQT graph when running the jeteja_record package while the robot is running in manual mode

jeteja_record_collectdata
